Description

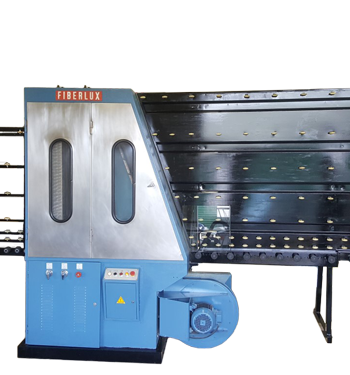

Model VDM 1636
Technical specifications
Workable thicknesses:
3 –19 mm
Holes diameter:
4 – 60 mm
Maximum size of notches; mill ø 10mm; depending on glass dimensions and on notches number and arrangement:
230×290 mm
Minimum workable dimensions (LxH) drilling:
420 x 300 mm
Minimum workable dimensions (LxH) milling:
900 x 420 mm
Maximum workable dimensions (LxH) drilling:
3600 x 1600 mm
Maximum workable dimensions (LxH) milling:
3600 x 1450 mm
Maximum glass size (LxH), transit only:
3600 x 2200 mm
Spindles maximum rotation speed:
12.000 rpm
Water pressure:
Min. 2.5 bar – Max. 5 bar
Water flow rate:
12 l/min’ – 20 l/min’
Min. pressure of compressed air:
6 bar
