Description

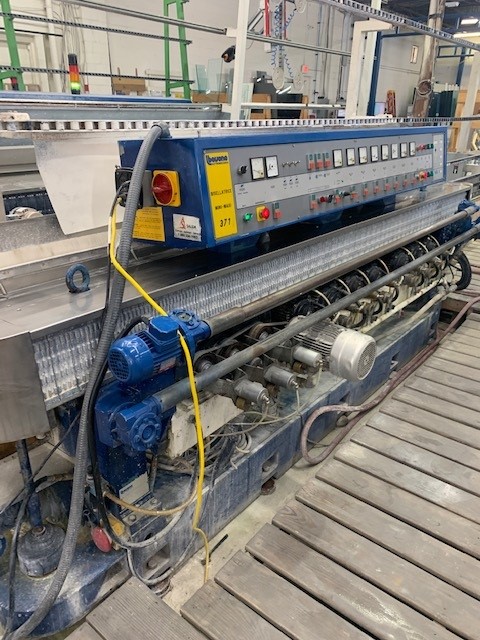

Model: MINI MAXI 371
220V 60hz 3ph
Vertical Straight Line Beveler
(11) Spindle straight line beveling machine for cerium polished bevel and pencil edge polishing of flat glass.
Beveling, smoothing and polishing wheel spindles are mounted on a separate swiveling beam which is adjustable for angle variation in seconds. This allows a quick change of angle from 3° up to 45° without adjusting each spindle. The 371 model fits a back spindle either for a diamond pencil edge wheel (150 mm) or for a 25° arris wheel.
Wheel Configuration:
(2) Diamond wheels (150 mm) for the beveled edge
(1) Diamond resin wheels (150 mm) for the beveled edge
(1) Diamond metallic wheel (150 mm) for the pencil edge
(4) Diamond wheels (150 mm) for the beveled edge
(3) Felt Wheels for high polish with liquid cerium
Specifications:
— Min. glass size: 35 x 35 mm (1-3/8″ x 1-3/8″)
— Glass thickness: 3 – 25 mm (1/8″ – 1″)
— Max. bevel range: 3° – 45°
— Max. bevel length: 60 mm (2-5/16″)
— Feed: 0.35 – 4.4 m/Min (1 – 14 FPM)
